Tachometer: Working Principle, Types, and Applications

A tachometer is a device used to measure the revolution rate of any rotating object such as a motor, engine, or rotating shaft. It can determine whether the rotation is in the forward (ahead) or reverse (astern) direction. Tachometers are widely used in marine engineering, automobiles, and industrial applications where accurate measurement of rotational speed is essential.



In this article, we will explore the working principle, types of tachometers, and their industrial applications.

⚙️ What is a Tachometer?

A tachometer is an instrument that measures the rotational speed in revolutions per minute (RPM) of a shaft or disk.

  • In automobiles, tachometers measure the engine speed.

  • In marine engineering, they monitor shaft revolutions to guide propulsion and synchronization.

  • In industries, tachometers help in synchronizing machines, ensuring operational efficiency.

🔑 Types of Tachometers

Tachometers can be broadly classified into mechanical and electrical types:

  1. Mechanical Tachometers

  2. Magnetic Tachometers

  3. AC Tachometers

  4. DC Tachometers

Let’s look at them in detail:

1. Mechanical Tachometer

  • Works on the principle of centrifugal force.



  • A rotating shaft drives mechanical weights, which either stretch or compress a spring depending on the speed.

  • Another type, called the Vibrating Reed Tachometer, uses a set of tuned reeds to match the oscillation frequency of the machine.




Drawbacks:

  • Limited accuracy due to inertia of rotating weights.

  • Cannot indicate the direction of rotation.

2. Magnetic Tachometer

  • Operates on the principle of eddy currents.

  • A rotating magnet induces eddy currents in a metallic cup, producing a torque proportional to speed.

  • Commonly used in speedometers of vehicles.

3. AC Tachometer

  • Functions similarly to an AC generator.

  • The rotating shaft drives the rotor, generating an alternating voltage.

  • The frequency or amplitude of the AC output is proportional to the rotational speed.

Applications: Widely used in feedback control systems and servo mechanisms.

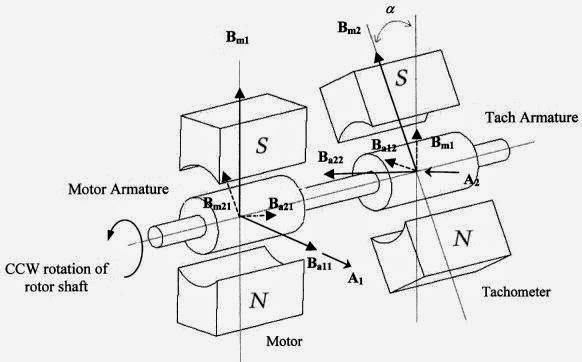

4. DC Tachometer

  • Equivalent to a DC generator.

  • Uses permanent magnets for magnetic flux, while the rotating shaft provides input motion.

  • Produces a DC output voltage proportional to speed.

  • Can be directly connected to control panels for monitoring and synchronization.

Applications:

  • Industrial machine speed control.

  • Feedback systems in automation.

  • Marine control rooms for monitoring shaft RPM.

⚡ Applications of Tachometers

  • Automobiles: Measuring engine RPM for optimal fuel efficiency.

  • Marine Engineering: Indicating shaft speed and direction on bridge control panels.

  • Industries: Machine synchronization, motor testing, and process automation.

  • Aerospace & Railways: Monitoring propulsion systems.

✅ Conclusion

Tachometers play a vital role in monitoring and controlling rotational speed in vehicles, ships, and industrial machines. With both mechanical and electrical (AC/DC) variants available, tachometers are integral to automation, control, and safety systems across engineering disciplines.

⚠️ Disclaimer:
This article is intended for educational and informational purposes only. The technical descriptions provided are simplified for better understanding. For practical design, selection, and implementation of tachometers in engineering systems, always refer to manufacturer specifications and professional guidelines.
